Information on product

Wireless Access Point: ULTIAIR 319KC

Shipment in 0days
Cost from 0.00
103.00 / 1art
  • Wireless Access Point: ULTIAIR 319KC

Click on the photo to enlarge it

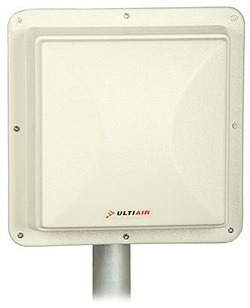

Wireless Access Point: ULTIAIR 319KC
Producer: Ultiair
FULL DESCRIPTION
ULTIAIR 319KC has been designed for creating efficient wireless IP CCTV and ISP networks. ULTIAIR series is characterized by short delays and high throughput. All ULTIAIR devices are mutually compatible. They can be managed via WinBox utility or telnet.
The device operates in unlicensed 5GHz band - no special permissions are needed. It can operate as client or base station, as well as a point-to-point node (bridge mode).
The RouterBoard with Mikrotik level 4 system has been put in outdoor housing of IP 66 class, which guarantees full protection against adverse weather conditions and corrosive environments (industry).

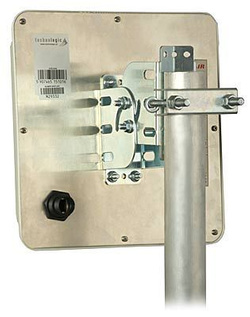

All ULTAIR devices include a complete set of accessories needed for installation on a mast or wall. They are powered from the included power supply, with PoE adapter.
Main features:
  • Flexible configuration;
  • Possibility of creating advanced network systems;
  • Efficient data transmission;
  • Weather-resistant housing (IP 66);
  • Quick configuration of Bridge mode;
  • Easy installation.
ULTIAIR devices are perfect for creating effective city surveillance systems. The family allows to build both the backbones of the systems and wireless access networks. The unique versatility of the devices is based on the implemented Linux software that allows different applications, from simple point-to-point links, indispensable in extensive IP video surveillance systems, to very sophisticated systems of data transmission.
An important feature of ULTIAIR family is possibility of using in industrial environments. The devices allow to create advanced wireless LAN networks, improving flexibility and efficiency of local networks. High throughput makes them suitable for transmitting video/multimedia data. ULTIAIR devices are specially designed for building efficient IP CCTV systems.
The set includes:
  • Panel antenna Technologic 5G-19D (5GHz 19dB)
  • with expanded housing
  • MikroTik RouterBoard 411 1x LAN, 1x miniPCI, level 3
  • MiniPCI Sparklan Atheros 5213 a/b/g, WMIA-123AG
  • Power supply (AC/24VDC) with PoE adapter
Modes of work:
  • Client
  • Bridge
Specifications:
  • Panel antenna Technologic 5G-19D (5GHz 19dB) with expanded housing

Name

Technologic 5G-19D + housing

Gain [dBi]

19
+/- 4

Frequency range [GHz]

5.15 - 5.75

Polarization

vertical/horizontal

Certificates

CE 1471

Housing

UV-resistant PS plastic

Shielding sheet

aluminum

Shape

square

Front/back ratio [dB]

>30

Horizontal beam [°]

21

Vertical beam [°]

17

VSWR

<1.85

Tilt adjustment [°]

+/- 40

Impedance [Ω]

50

Connector

pigtail / µFL

Dimensions [mm]

200 x 200

Weight [kg]

0.6

Resistance to wind [km/h]

150

Ingress protection class

IP66

  • RouterBoard 411
Name Mikrotik Routerboard 411
Processor
Atheros AR7130 300MHz
RAM 32MB
LAN ports 1x 10/100
miniPCI slot
1
NAND memory 64MB
Power 10-28 V DC
Softwaree RouterOS Level 3
Power consumption
3W-12W
Management WinBox, Telnet
  • SparkLan WMIA-123AG 5GHz
Name SparkLan WMIA-123AG
Standards

802.11a

802.11b

802.11g

Operating frequency

2.4 - 2.483 GHz

5.15 - 5.35 GHz

5.47 - 5.725 GHz

5.725 - 5.850 GHz

Tx power

802.11a



17dBm  6-24Mbps

16dBm 36Mbps

15dBm  48Mbps

14dBm  54Mbps

11dBm  108Mbps

802.11g



  20dBm  6-24Mbps

18dBm  36Mbps

17dBm  48Mbps

16dBm  54Mbps

802.11b



 20dBm  1-11Mbps

Rx sensitivity

 802.11a



 -70 dBm  54 Mbps

-74 dBm  48 Mbps

-80 dBm  36 Mbps

-83 dBm  24 Mbps

-87 dBm  18 Mbps

-88 dBm  12 Mbps

-89 dBm  9 Mbps

-90 dBm  6 Mbps

 802.11g



 -70 dBm  54 Mbps

-74 dBm  48 Mbps

-80 dBm  36 Mbps

-83 dBm  24 Mbps

-87 dBm  18 Mbps

-88 dBm  12 Mbps

 -89 dBm  9 Mbps

-90 dBm  6 Mbps

 802.11b



 -93 dBm 1Mbps

-87 dBm  11 Mbps
