Information on product
FULL DESCRIPTION

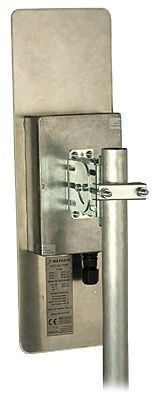

ULTIAIR 415SB has been designed for HotSpots operating in 2.4GHz band
Thanks to 300MHz processor and 64MB RAM the device is characterized by short delays and high throughput. It can be managed via WinBox utility or telnet. The device operates in unlicensed 2.4GHz band - no special permissions are needed. It can operate as client or base station, as well as a point-to-point node (bridge mode).
The RouterBoard with Mikrotik level 4 system has been put in outdoor housing of IP 66 class, which guarantees full protection against adverse weather conditions and corrosive environments (industry).
All ULTAIR devices include a complete set of accessories needed for installation on a mast or wall.
They are powered from the included power supply, with PoE adapter.
They are powered from the included power supply, with PoE adapter.
Main features:
- Flexible configuration;
- Possibility of creating advanced network systems (NAT, firewall, QoS);
- Efficient data transmission (up to 16250 packets per second);
- Weather-resistant housing (IP 66);
- Quick configuration of Access Point, Bridge, and HOTSPOT modes;
- Easy installation.
An important feature of ULTIAIR
devices is possibility of application in tough industrial environments.
The devices allow to create advanced WLAN systems. High throughput
makes it easy to provide service to many clients and enables effective
multimedia transmission.
HotSpots
enable the users of handhelds with 802.11b/g wireless connectivity to
get access to the Internet in public space. Such solutions are very
popular in city centers, train and bus stations, shopping molls etc.
The basic component of any HotSpot is Access Point - the device that bridges the wireless and wired network.
Advantages of HotSpot based on ULTIAIR 415SB:
- seamless service for up to 200 users per base station,
- dynamic speed adjustment for connected users,
- possibility of enforcing speed limits,
- possibility of setting time limits (for one client, with automatic disconnection),
- possibility of displaying commercials in specified time intervals,
- possibility of placing a custom home page (of the sponsor of the HotSpot),
- possibility of access scheduling,
- domain filtering,
- possibility of requesting authentication and authorization: user/password, mac (for paid hotspots),
- possibility of displaying information on login screen.
Modes of work:
- AP
- Client
- Bridge
- HotSpot
This ULTIAIR
device enables data transmission via GSM network. Its USB interface
allows to connect a GSM/3G modem. Such a solution is ideal for Internet
connectivity in remote places, far from cities. An example is IP video
monitoring system on a distant construction site or transmission of
telemetry data.
The set includes:
- Sector Antenna: Technologic 2.4GHz 15dB (with housing)
| Name | Technologic 2.4GHz 15dB |
| Gain [dBi] | 15 (+/- 4) |
| Frequency range [GHz] | 2.4 - 2.5 |
| Polarization | vertical |
| Housing | UV-resistant PS plastic |
| Shielding sheet | aluminum |
| Shape | rectangle |
| Front/back ratio [dB] | >30 |
| Horizontal beam [°] | 95 |
| Vertical beam [°] | 12 |
| VSWR | <1.5 |
| Tilt adjustment [°] | +/- 30 |
| Impedance[Ω] | 50 |
| Connector | N/f |
| Dimensions [mm] | 545 x 90 |
| Weight [kg] | 1 |
| Resistance to wind [km/h] | 150 |
| IP class | IP66 |
- RouterBoard 411U, Mikrotik level 4
| Name | Mikrotik Routerboard 411U |
| Processor |
Atheros AR7130 300MHz |
| RAM | 32MB |
| LAN ports |
1x 10/100 |
| miniPCI slots |
1 |
| NAND memory |
64MB |
| Power | 10-28 VDC |
| Software | RouterOS Level 4 |
| Power consumption |
3W-14W |
| Management | WinBox, Telnet |
- MiniPCI Sparklan Atheros 5213 a/b/g, WMIA-123AG
| Name | SparkLan WMIA-123AG | ||
| Standards |
802.11a 802.11b 802.11g |
||
| Operating frequency |
2.4 - 2.483 GHz 5.15 - 5.35 GHz 5.47 - 5.725 GHz 5.725 - 5.850 GHz |
||
| Tx power |
802.11a
17dBm 6-24Mbps 16dBm 36Mbps 15dBm 48Mbps 14dBm 54Mbps 11dBm 108Mbps |
802.11b
20dBm 6-24 Mbps 18dBm 36 Mbps 17dBm 48 Mbps 16dBm 54 Mbps |
802.11g
20dBm 1-11 Mbps |
| Rx sensitivity |
802.11a
-70 dBm 54 Mbps -74 dBm 48 Mbps -80 dBm 36 Mbps -83 dBm 24 Mbps -87 dBm 18 Mbps -88 dBm 12 Mbps -89 dBm 9 Mbps -90 dBm 6 Mbps |
802.11g
-70 dBm 54 Mbps -74 dBm 48 Mbps -80 dBm 36 Mbps -83 dBm 24 Mbps -87 dBm 18 Mbps -88 dBm 12 Mbps -89 dBm 9 Mbps -90 dBm 6 Mbps |
802.11b
-93 dBm 1 Mbps -87 dBm 11 Mbps |
- 24VDC power supply with PoE adapter
