Outdoor antenna 10dBi GSM/EDGE/3G
Producer: TransData
FULL DESCRIPTION
GSM/DCS/UMTS antenna TRANS-DATA KPV7.5/10 is a panel, directional antenna used for cooperation with GSM repeaters. The antenna features 7.5 dBi gain in 806-960 MHz band and 10 dBi in 1710-2500 MHz band, which makes it a very useful device for GSM, DCS, and UMTS applications, including indoor and outdoor use.
Distinguishing features:
  • outdoor/indoor use, directional characteristic,
  • broadband device: 806-960MHz and 1710-2500MHz (GSM/DCS/UMTS),
  • 7.5 dBi (806-960MHz) and 10 dBi (1710-2500MHz) gain,
  • VSWR <1.5,

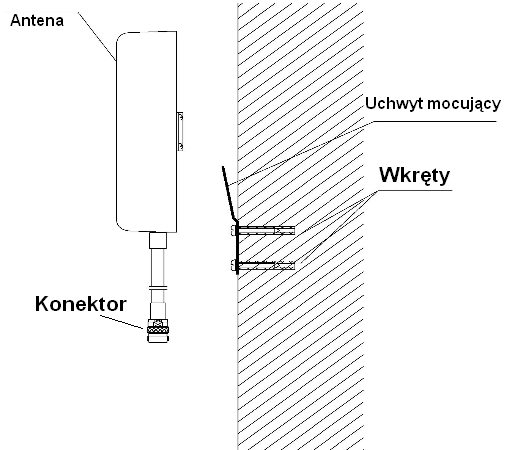

  • fixing to wall
Specifications:
Name GSM/DCS/UMTS KPV7.5/10
Frequency range [MHz] 806-960 1710-2500
Gain [dBi] 7.5/10
VSWR ≤1.5
Angle of radiation [°] V/H  55/70 (806-960MHz)
45/60 (1710-2500MH)
Impedance [Ω] 50
Polarization
Vertical
Max supplied power [W] 50
Connector N-f
Dimensions [mm] 210×180×44
Weight [kg] 0.60
Tech specs:
Weight [kg]
0.6
Band [Mhz]
806-960, 1710-2500
Polarization
pionowa
Beamwidth V [degrees]
45/55
Beamwidth H [degrees]
60/70
Gain [dBi]
10
