Antenna ASP-8W LUX A with LNA-177 amplifier

Shipment in 0days
Cost from 2.00
11.00 / 1art
  • Broadband TV Antenna: ASP-8W LUX A (with LNA-177 amplifier)

Click on the photo to enlarge it

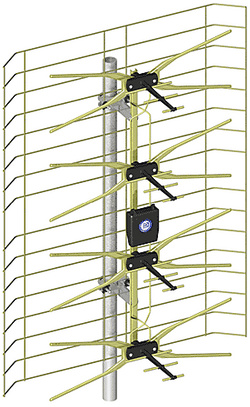

 Antenna ASP-8W LUX A with LNA-177 amplifier
FULL DESCRIPTION
Broadband antenna (ch.6-69), packed in foil. Aluminum parts with golden galvanic coloring, electro-galvanized steel structural components. The set includes shielded RF amplifier and AC/DC adapter with RF/DC separator allowing to provide power to the amplifier, with the same cable which sends the signal from the antenna to the receiver. It is possible to assemble the antenna without a mast (e.g. if we want the antenna to be placed on a window-sill).
This model of antenna is equipped with shielded amplifier LNA-177, with F-type output.

Specifications
Name

ASP-8W Lux A

TV channels
  6-69
Total gain (VHF)
dB 24-28
Total gain (UHF) dB 38-44
Front/back ratio dB 16-25
Half-power beam (H) º 47
Half-power beam (V)
º 38
Polarization   horizontal
Number of elements   20
Output impedance ohm 75
Amplifier type
  LNA-177
Supplying voltage (amplifier)
V 12
AC/DC adapter - output
V/mA 12/100
Power consumption (AC 230V) W 1
Wind pressure (120km/h) N 90
Dimensions (H x W) cm 80x60
Packaging   foil
Weight kg 1.16
Tech specs:
Channels
6-69
The overall VHF strengthening [dB]
24-28
The overall UHF strengthening [dB]
38-44
Front/back radiation [≥ dB]
16-25
Half power beamwidth H
47
Half power beamwidth V
38
Polarization
pozioma
Number of elements
20
Impedancy [Ω]
75
Amplifier type
LNA-177
Amplifier power supply voltage [V]
12
Power supply [V/mA]
12/100
220V network power consumption [W]
1
Wind pressure strength (120km/h) [N]
90
Dimensions [cm]
80x60
Packaging
folia
Weight [kg]
1,16
