Antenna ATK-P1/2GHz 7dBi UMTS +5 m cable + FME female

Shipment in 0days
Cost from 3.00
17.00 / 1art
  • UMTS Antenna: ATK-P1/2GHz (7dBi, outdoor, 5m cable, FME socket)

Click on the photo to enlarge it

Antenna ATK-P1/2GHz 7dBi UMTS +5 m cable +  FME female
FULL DESCRIPTION
Panel antenna ATK-P1/2GHz has been designed for use with UMTS terminals working in 1.9-2.1 GHz band. It definitely solves the typical problem that the signal in the place one wants to use the laptop with UMTS card or UMTS mobile is too weak. Use of the antenna provides free choice of working place, as well as can improve speed of transmission.
Polarization of the antenna is marked with the sticker place on the rear part of the housing.
Specifications

Name

ATK-P1/2 GHz

Length of RF-5 cable [m]

5

Connector

FME female

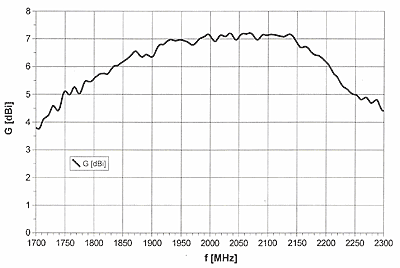

Gain [dBi]

7

Band [MHz]

1900-2170

Polarization

V/H

VSWR

<2

Half power beam (V) [deg]

70

Half power beam (H) [deg]

70

Impedance [ohm]

50

Dimensions [mm]

115 x 115

Weight [kg]

0.41

Mast diameter [mm]

up to 45

Packaging

cardboard box

Tech specs:
Length [m]
115 x 115 [mm]
Cable length [m]
5
Impedancy [Ω]
50
Weight [kg]
0.41
Packaging
karton
Band [Mhz]
1900-2170
Polarization
V/H
Connector type
FME
Beamwidth V [degrees]
70
Beamwidth H [degrees]
70
SWR [<]

Standing wave ratio

2
Gain [dBi]
7
